Version control with git for scientists

PY Barriat

May 15th, 2023
some parts inspired on slides from CISM

Discuss 💬

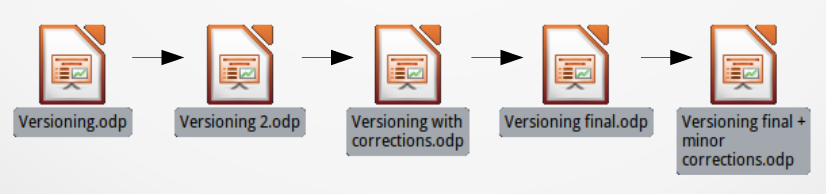

How do you manage different file versions ❓

How do you work with collaborators on the same files ❓

15/05/2023 | Version control with Git

Notions of code versioning

Track the history and evolution of the project

think of it as a series of snapshots (commits) of your code

Benefits

  • possibility to go back in time 📆

    tracking bugs
    recovering from mistakes

  • Information about the modification 📋

    who, when, why

15/05/2023 | Version control with Git
  • team work 👥
    • Simultaneous work on a project

      No need to send email to say "I'm working on that file" (dropbox organization)

    • Asynchronous synchronisation

      Allow work Offline (opposite to overleaf project)
      Need conflict resolution

Different usage

  • local
  • client-server (Subversion)
  • distributed (Git)
15/05/2023 | Version control with Git

Workflow

Testing new idea (and easy way to throw them out) 🚧

Multiple version of the code

  • Stable (1.x.y)
  • Debug (1.x.y+1)
  • Next "feature" release (1.x+1.0)
  • Next "huge" release (2.0.0)
15/05/2023 | Version control with Git

Open-Source Code

Compare Repositories

What is git ?

Version control system

  • Manage different versions of files
  • Collaborate with yourself
  • Collaborate with other people

Why use git

"Always remember your first collaborator is your future self, and your past self doesn't answer emails"
Christie Balhai 😉

15/05/2023 | Version control with Git

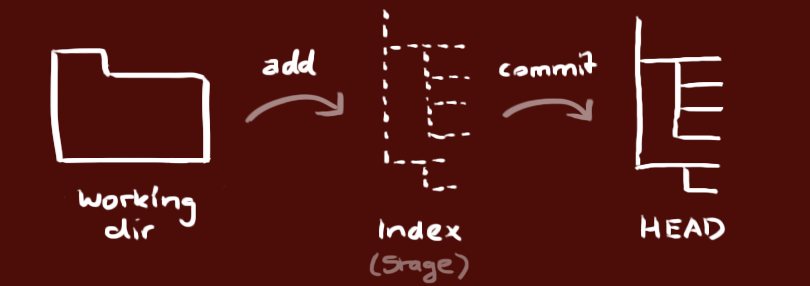

git workflow

Your local repository consists of three areas maintained by git

  • the first one is your Working Directory which holds the actual files
  • the second one is the INDEX which acts as a staging area
  • and finally the HEAD which points to the last commit you've made

15/05/2023 | Version control with Git
15/05/2023 | Version control with Git

Windows : use git in VSCode

Visual Studio Code is one of the most popular and powerful text editors used by software engineers today

Free and available for macOS, Windows, and Linux

Linux: wget the deb package then dpkg -i code*.deb

Prerequisite

To use git in VSCode, first make sure you have git installed on your computer

keep everything by default during the install process

15/05/2023 | Version control with Git

Configure git in VSCode

  • Open Settings (JSON) and add the properties to the end of the page :
{
  "terminal.integrated.profiles.windows":
  {
    "Git Bash":
    {
      "path":"C:\\Program Files\\Git\\bin\\bash.exe"
    },
  },
  "terminal.integrated.defaultProfile.windows": "Git Bash"
}
  • Reopen VS Code
  • Open a new terminal
15/05/2023 | Version control with Git

Getting started with git

checkout a remote repository

create a local working copy of a remote repository

git clone https://gogs.elic.ucl.ac.be/TECLIM/Git_Training.git

add & commit

you can propose changes (add it to the INDEX)

git add <filename>

you can commit these changes (to the HEAD)

git commit -m "Commit message"
15/05/2023 | Version control with Git

commit

git versioning is a succession of snapshot of your files at key time of their development

each snapshot is called commit which is :

  • all the files at a given time
  • a unique name (SLHA1)
  • metadata

    who created, when, info

  • pointer to previous(es) commit(s)
15/05/2023 | Version control with Git

Your changes are now in the HEAD of your local working copy.

push

to send those changes to your remote repository

git push

pull

to update your local working directory to the newest commit, to fetch and merge remote changes

git pull
15/05/2023 | Version control with Git

git diff

15/05/2023 | Version control with Git

git undo

In case you did something wrong (which for sure never happens 😉)

15/05/2023 | Version control with Git

Simple Git Exercices

First, configure your environment (just once) 🚧

on your laptop, on your ELIC account, etc

git config --global user.name "Your Name"
git config --global user.email "foo@bar.be"
git config --global color.ui auto
git config --global core.editor "vim"

git config --list

Now, clone https://gogs.elic.ucl.ac.be/TECLIM/Git_Training.git

Theses are very simple exercices to learn to manipulate git.
In each folder, simply run ./create.sh and follow the guide 😎

15/05/2023 | Version control with Git

git branches

  • a branch is pointer to a commit (represent an history)
  • a branch can point at other commit

    it can move !

  • a branch is a way to organize your work and working histories
  • since commit know which commits they are based on, branch represents a commit and what came before it
  • a branch is cheap, you can have multiple branch in the same repository and switch your working dir from one branch state to another
15/05/2023 | Version control with Git

branches demo

git commit
git checkout -b newbranch
git checkout newbranch
git commit
git commit
git checkout master
git commit
git commit

default branch: master

15/05/2023 | Version control with Git
  • create a new branch : git checkout -b newbranch
  • switch to a branch : git checkout newbranch
  • delete a branch : git branch -d newbranch
  • list all branches : git branch -a

    see both local and remote branches

branch is cheap : do it often 👍

branch allow to have short/long term parallel development

15/05/2023 | Version control with Git

merging branches

the interest of branch is that you can merge them

include in one (branch) file the modification done somewhere else

git merge bx
git branch -d bx
git commit

15/05/2023 | Version control with Git

Difference between git & GitHub ?

git is the version control system service

git runs local if you don't use GitHub

GitHub is the hosting service : website

on which you can publish (push) your git repositories and collaborate with other people

15/05/2023 | Version control with Git

Github

  • It provides a backup of your files
  • It gives you a visual interface for navigating your repos
  • It gives other people a way to navigate your repos
  • It makes repo collaboration easy (e.g., multiple people contributing to the same project)
  • It provides a lightweight issue tracking system
15/05/2023 | Version control with Git

... and GitLab vs GitHub vs others

GitLab is an alternative to GitHub

GitLab is free for unlimited private projects. GitHub doesn't provide private projects for free

And for ELIC, Gogs does the job: https://gogs.elic.ucl.ac.be/

  • shares the same features

    dashboard, file browser, issue tracking, groups support, webhooks, etc

  • easy to install, cross-platform friendly
  • uses little memory, uses little CPU power
  • ... and 100% free 😄
15/05/2023 | Version control with Git

What is git good for ?

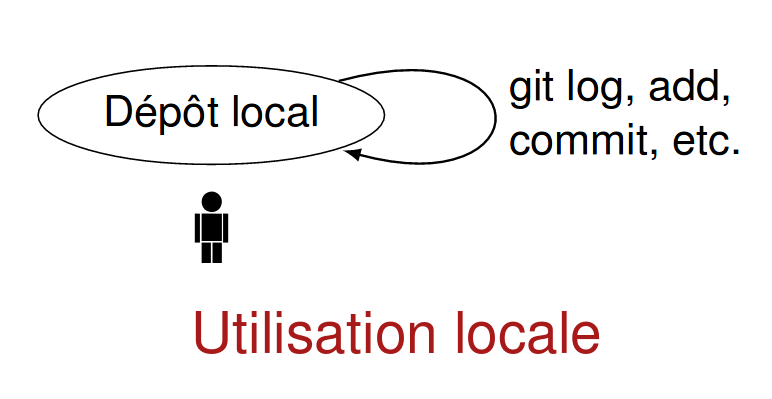

Local

Backup, reproducibility

15/05/2023 | Version control with Git

Client-Server

Backup, reproducibility, collaboration

15/05/2023 | Version control with Git
Limitation

git conflict 💥

multiple version of files are great

  • not always easy to know how to merge them
  • conflict will happen (same line modify by both user)

conflict need to be resolved manually ! 😨

  • boring task
  • need to understand why a conflict is present !
  • do not be afraid of conflict ! 💪

    Do not try to avoid them at all cost !

  • stay in sync as most as possible and keep line short
15/05/2023 | Version control with Git

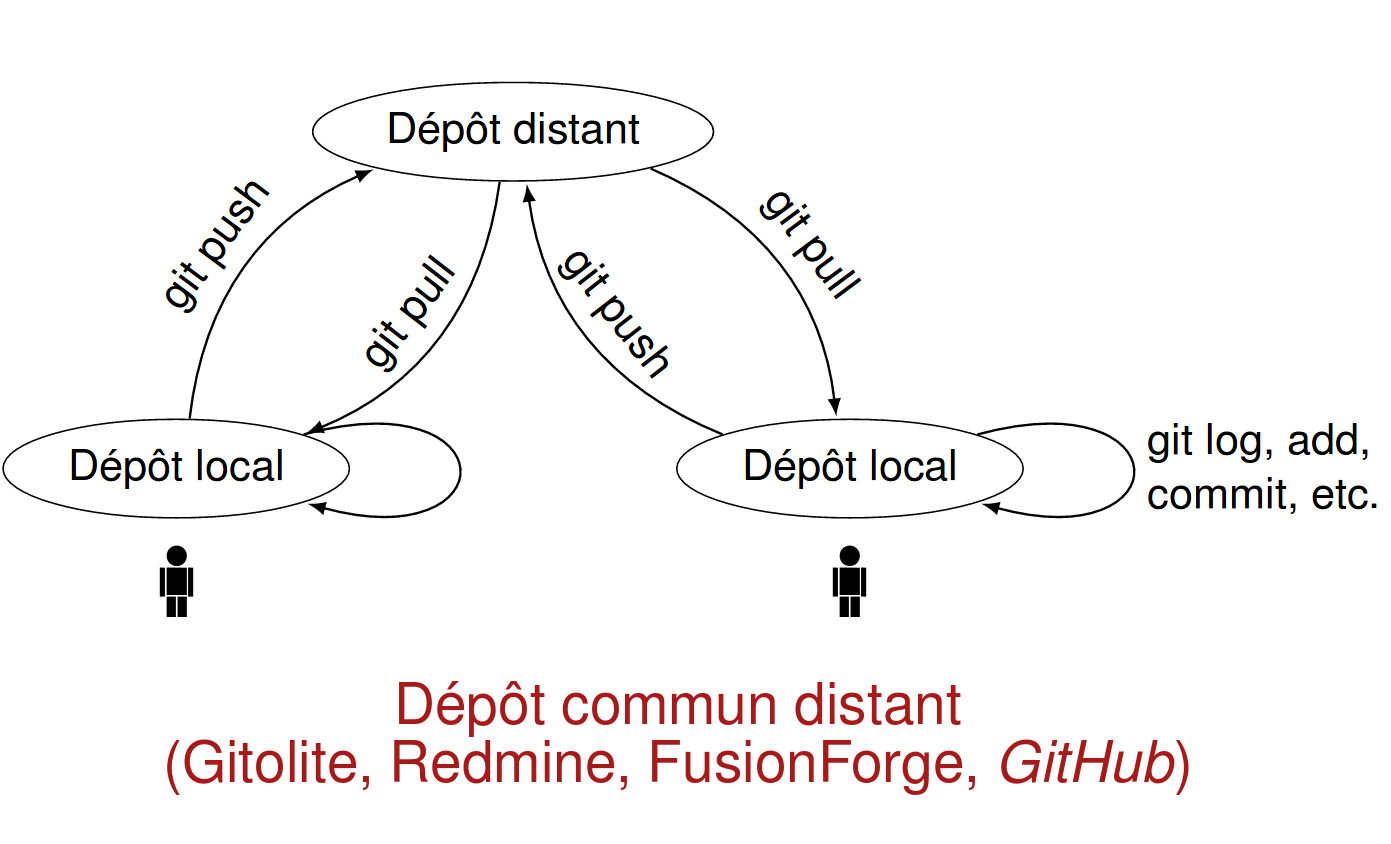

Distributed

Backup, reproducibility, collaboration, transparency

Summary of operations

Conclusion

  • versioning is crucial both for small/large project ❗
  • avoid dropbox for paper / project 😖
  • do meaningful commit
  • do meaningful message
  • git more complicated but the standard 😃
15/05/2023 | Version control with Git

Version control with Git for scientists 📈

15/05/2023 | Version control with Git

Notes for presenter.

Discussion sur l'intérêt du versioning

```mermaid pie "Git" : 73 "Mercurial" : 1 "Subversion (SVN)" : 22 "Bazaar" : 0 "CVS" : 1 ```

Notes for presenter.

Explications

Notes for presenter.

Les goûts et les couleurs

Notes for presenter.

Analogie à SVN

Notes for presenter.

Explications

Notes for presenter.

"clone" = clone + checkout pull = fetch + merge
